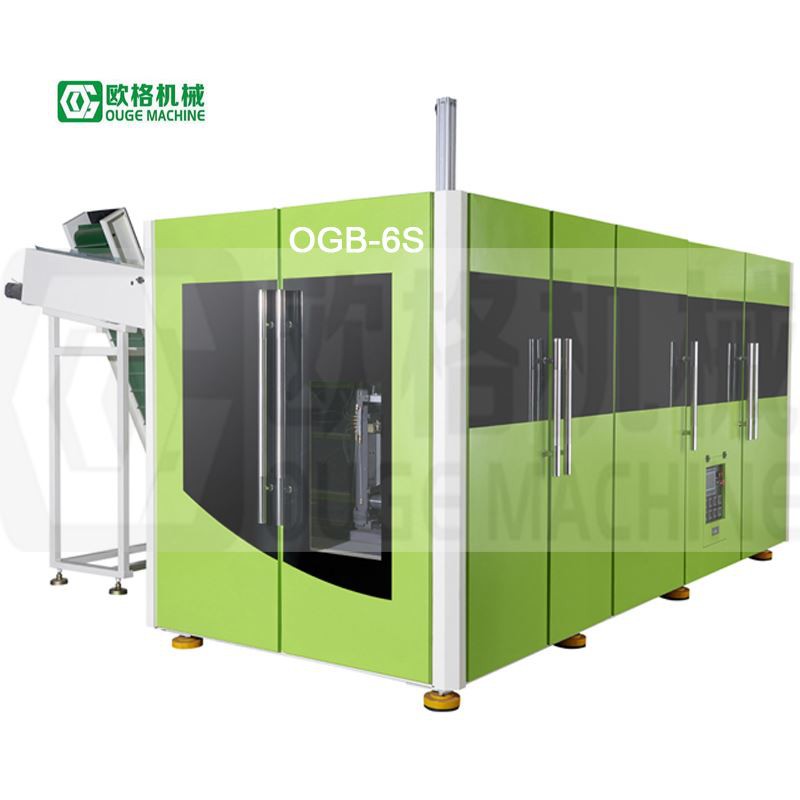

6 cavity hot filling stretch blow molding machine
1.Production Features
This machine can blow 100ml-2000ml bottles.
Servo motor saves more electricrty and gets more output.
Slip for bottle mould make the installation more easy.

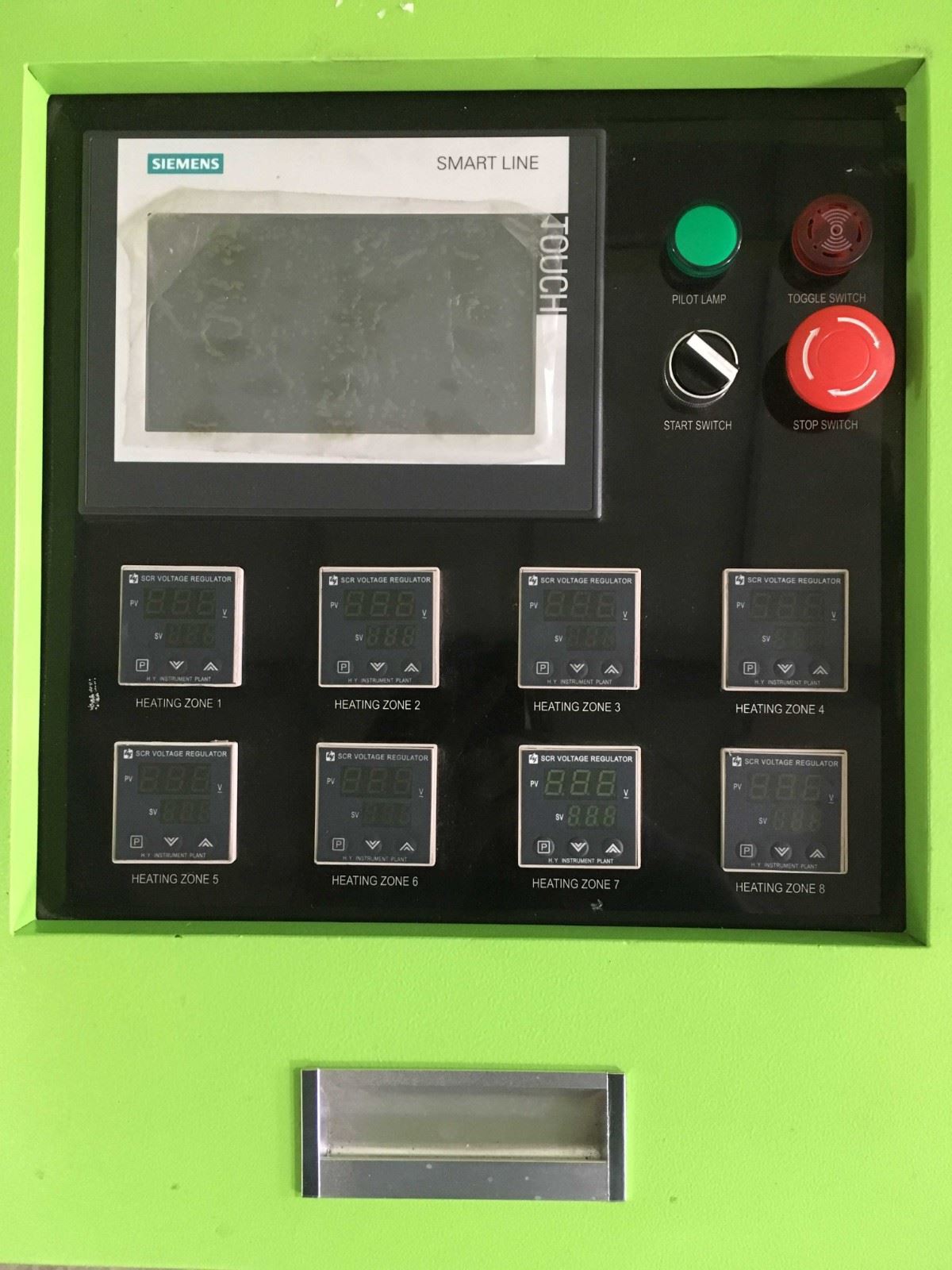

The machine adopts human computer face to control the whole working procedures,auto-loading,auto blowing,auto dropping.Action cylinders are all assembled with magnetic induction switches.Connect with PLC to control every cylinder.Next action will continue after the former step done,if former step is not finished,alarm automatic and don’t work.PLC displays problem position.
2. Product specification
| OGB-6s | ||||
PRODUCT | Theoretical output | PSC/H | 6500 | |
| Max volume | L | 1.5 | ||
| Max height | mm | 360 | ||
| Max diameter | mm | 105 | ||
MOULD | Cavity | / | 6 | |
| Mould plate dimension(LxH) | mm | 840x360 | ||
Mould thicknes | mm | 198 | ||
Mould opening stroke | mm | 110 | ||
ELETRICAL | Power | kw | 220-380v/50-60hz | |
| Total power | kw | 35 | ||
| Heating power | kw | 32 | ||
| AIR SYSTEM | Operation pressure | Mpa | 0.8-1.0 | |
| Action air consuming | m³/min | ≥1.6 | ||
| Blowing pressure | Mpa | 2.6-4.0 | ||
| Blowing air consuming | m³/min | ≥4.8 | ||
MACHINE | Blower dimension(LxWxH) | m | 3.9x1.9x2.0 | |
| Blower weight | KG | 3200 | ||
Oven dimension (LxWxH) | m | 2.1x1.9x2.4 | ||
| Oven weight | KG | 300 | ||
3.Production Application
water,beverage,tea drinks,edible oil and condiment shuch as soy sauce.

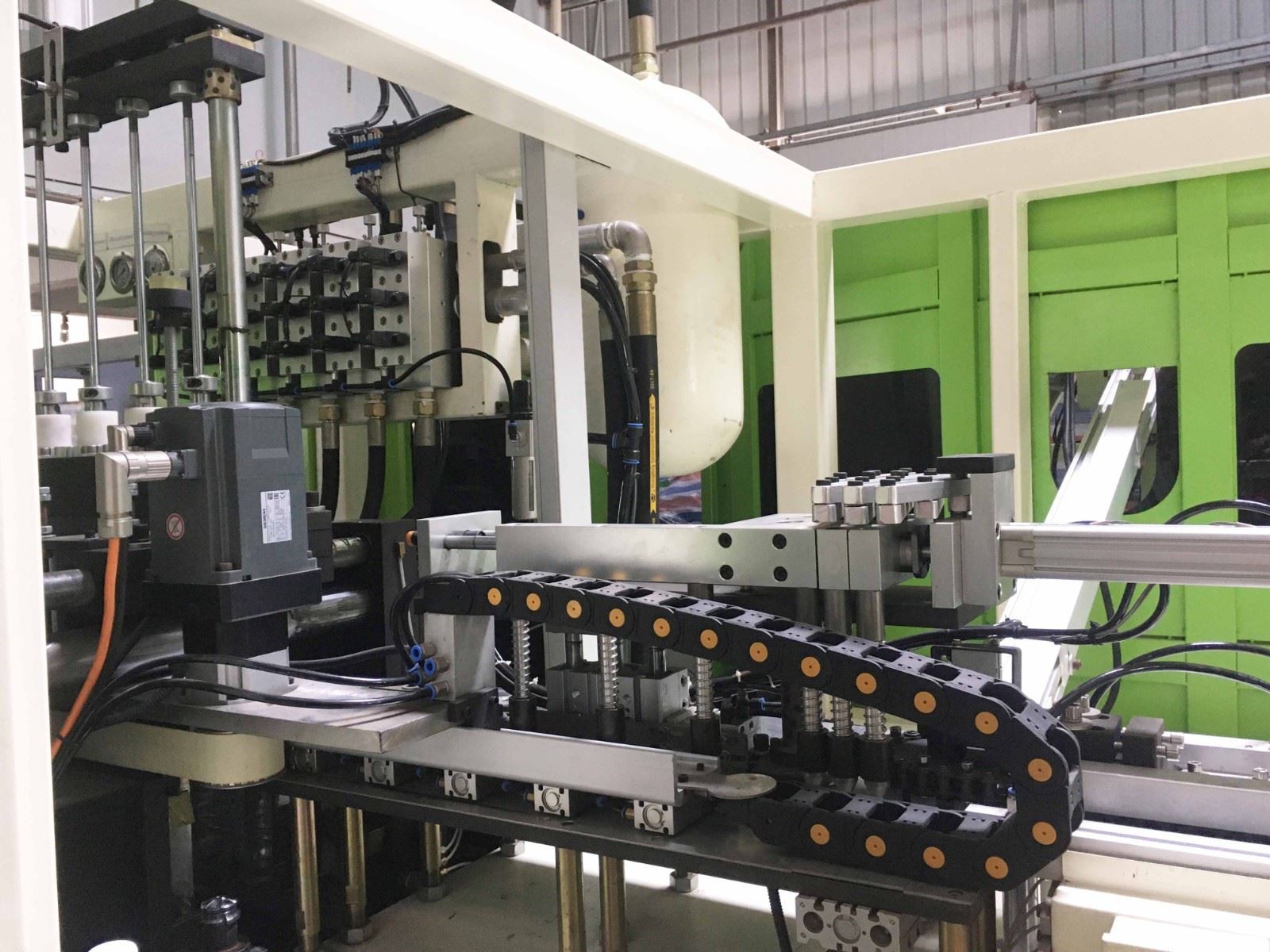

4. Machine details
5. Workshop
OUGE company specializes in the production of PET automatic and semi-automatic blowing machines, preform moulds and bottle moulds. The main products include: all kinds of carbonated beverage bottles, juice bottles, alcohol drinks bottles, cosmetic containers, PMMA lamps, PP infusion bottles, edible oil bottles ,etc. Ouge consists of many professional engineers with rich experience in the PET industry and high-quality staff. Over the past several years, Ouge has always been devoting its utmost efforts to improving the technology, researching the market and developing new products to suit for all customer needs.
6.Customers
We will visit our customers factory regularly to understand their latest developments and needs. Formulate future business plans together and cooperate more friendly.
7.Shipping & delivery
Payment：L/C,T/T
Available Trade Terms：FOB,EXW
Port：NINGBO/SHANGHAI PORT
Warranty：1 years
Shipping: By sea/air
