Automatic PET Stretch Blow Making Machines
1.Production Features
●Blowing 0.1-1.5 PET common bottles.
●Durable PLC micro computer controling system controls time can be accurate to 0.01seconcs.
●The air supply system consists of slight blow,high pressure blow,low pressure actions,to supply enough air for different products.
2. Product specification
| OGM-3 | ||||
PRODUCT | Theoretical output | PSC/H | 2200 | |
| Max volume | L | 1.5 | ||
| Max height | mm | 360 | ||
| Max diameter | mm | 105 | ||
MOULD | Cavity | / | 3 | |
| Mould plate dimension(LxH) | mm | 490x470 | ||
Mould thicknes | mm | 240 | ||
Mould opening stroke | mm | 200 | ||
ELETRICAL | Power | kw | 220-380v/50-60hz | |
| Total power | kw | 18 | ||
| Heating power | kw | 15 | ||
| AIR SYSTEM | Operation pressure | Mpa | 0.8-1.0 | |
| Action air consuming | m³/min | ≥1.0 | ||
| Blowing pressure | Mpa | 2.6-3.0 | ||
| Blowing air consuming | m³/min | ≥1.6 | ||
MACHINE | Blower dimension(LxWxH) | m | 2.05x1.45x2.5 | |
| Blower weight | KG | 1500 | ||
Oven dimension (LxWxH) | m | 1.4x0.6x1.4 | ||
| Oven weight | KG | 300 | ||
3.Bottle samples
Hand sanitizer bottles
Carbonated bottles
water bottles

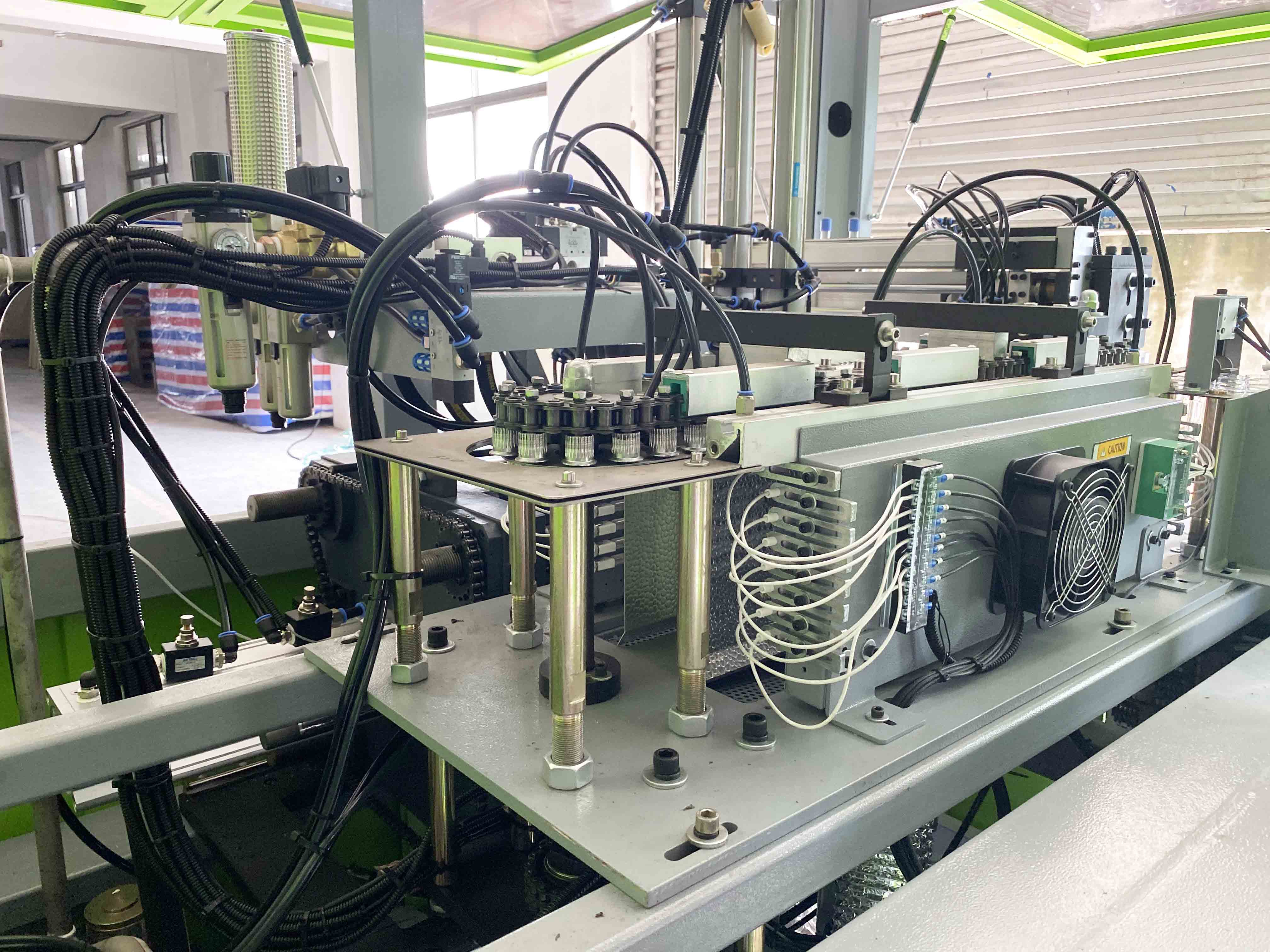

4. Machine details
6.Customer's factory
Uganda
Thailand
7.Shipping & delivery
●Payment：L/C,T/T
●Available Trade Terms：FOB,EXW
●Port：NINGBO/SHANGHAI PORT
●Warranty：1 years
●Shipping: By sea/air
