Fully Automatic Plastic Bottle Making Machine

1.Main features

●Fast speed, accurate position, smooth action.

●According to special demand, adopt cross double crank pressed clamping, with strong clamping force. Mould open stroke can be adjustable according to the bottle size to save the time.

●Reliable and special valve design make all the air system clear.

●Servo motor saves more electricity and gets more output.

●Automatic lubrication oil device protects the machine well.

●Production workmanship process is fully automatic to make best quality and pollution-free. It holds less investment, high efficiency, easy operation, simple repair, safety etc.

2. Machine specification

OGB-6S
PRODUCT	Theoretical output	PSC/H	6500
	Max volume	L	1.5
	Max height	mm	360
	Max diameter	mm	105
MOULD	Cavity	/	6
	Mould plate dimension(LxH)	mm	840x360
	Mould thicknes	mm	198
	Mould opening stroke	mm	110
ELETRICAL	Power	kw	220-380v/50-60hz
	Total power	kw	35
	Heating power	kw	32
AIR SYSTEM	Operation pressure	Mpa	0.8-1.0
	Action air consuming	m³/min	≥1.6
	Blowing pressure	Mpa	2.6-4.0
	Blowing air consuming	m³/min	≥3.2
MACHINE	Blower dimension(LxWxH)	m	3.9x1.9x2.0
	Blower weight	KG	3200
	Preform autoloader dimension (LxWxH)	m	2.1x1.9x2.4
	Preform autoloader weight	KG	300

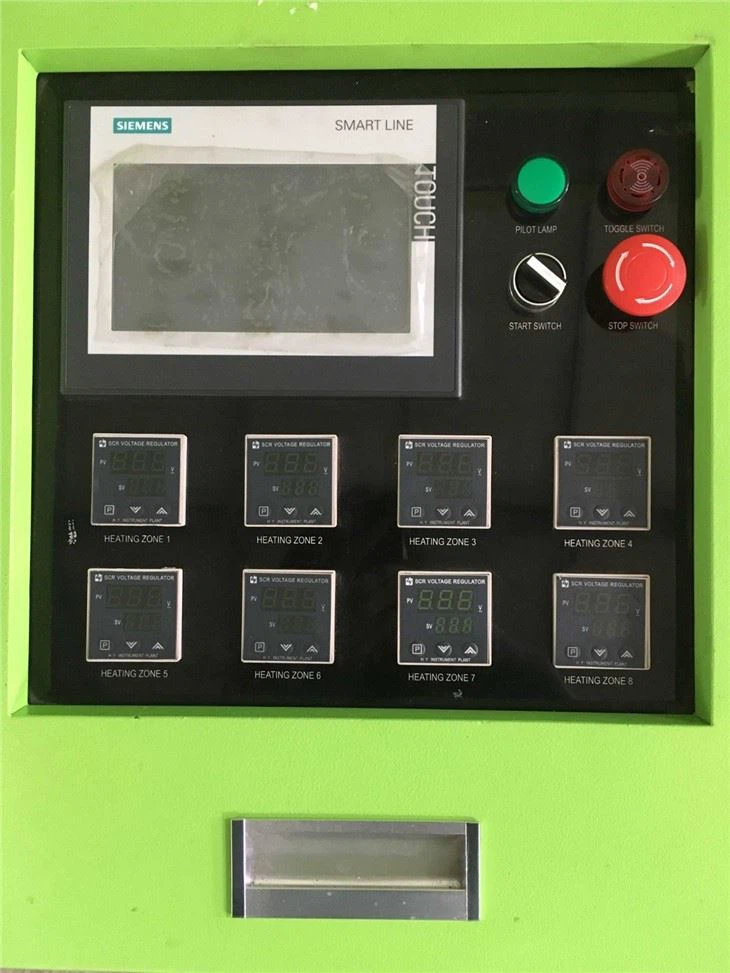

3. Machine details

4.After sales service

●We provide our experienced engineers to help installing, commissioning and training your workers to start from our factory area.

●We supply below necessary documents with the machine:
a. Machine layout
b. Electricity diagram
c. Machine certificate
d. General manual book/maintenance book

●After one year guarantee, the seller provides payable spare parts and technician's VISITING maintenance service

5.Customer's factory
