Packaging & Delivery
Packaging Details
Standard export package
Port
Ningbo
Lead Time :
Quantity(Sets) | 1 - 5 | >5 |
Est. Time(days) | 45 | To be negotiated |
Product Description
ITEM | 单位 | OGB-2-10 | ||
理论产量 | Theoretical output | Pcs/h | 1200 | |
瓶型规格 PRODUCT | 最大容积 | Max. Volume | L | 10.0 |
最大高度 | Max. height | mm | 360 | |
最大直径 | Max. diameter | mm | 195 | |
成型组规格 MOULD | 模穴数 | Number of cavities | / | 2 |
模板尺寸 | Mould plate dimension(L×H) | mm | 600×360 | |
模厚 | Mould thickness | mm | 280 | |
开模行程 | Mould opening stroke | mm | 220 | |
电力规格 ELECTRICAL | 电源 | Power | 220-380V 50-60Hz | |
总功率 | Total power | KW | 25 | |
加热功率 | Heating power | KW | 22 | |
空压机规格 AIR SYSTEM | 动作压力 | Operation pressure | Mpa | 0.8-1.0 |
动作耗气量 | Action air consuming | M3/min | ≥1.6 | |
吹气压力 | Blowing pressure | Mpa | 2.6-4.0 | |
吹气耗气量 | Blowing air consuming | M3/min | ≥3.2 | |
机器规格 MACHINE | 吹瓶机主机尺寸 | Main body dimension(L×W×H) | M | 3.4×1.9×2.5 |
吹瓶机主机重量 | Main body weight | KG | 2600 | |
瓶坯输送带尺寸 | Preform auto-loader | M | 1.9×1.9×2.2 | |
瓶坯输送带重量 | Preform automatic weight | KG | 200 | |
ABOUT US

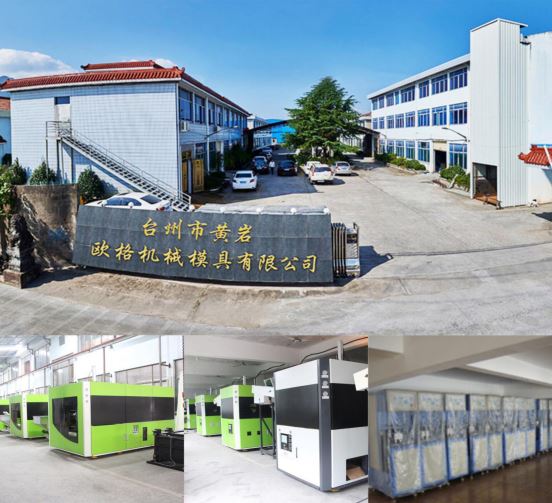

OUGE company is located in the East China Sea coast, the famous "land of plastic mold"----Huangyan Zhejiang.Specializes in the production of PET automatic and semi-automatic blowing machines,preform moulds and bottle moulds.The main products include:all kinds of carbonated beverage bottles, juice bottles,alcohol drinks bottles, and cosmetic containers, PMMA lamps, PP infusion bottles, edible oil bottles,etc.OUGE consists of many professional engineers with rich experience in the PET industry and high-quality staff.Over the past several years, OUGE has always been devoting its utmost effforts to improving the technology, researching the market and developing new products to suit for all customer needs.
PACKING: wooden case &plastic packaging
SHIPPING:By sea
(1). The Blow Mold system does not require highly trained operators to produce consistent quality bottles.
(2). The bottle making process starts by loading preforms into the preheater.
(3). The preheater uses a variable speed track that moves the preforms through a heating tunnel. The heat tunnel has specially designed heating elements for a consistent heating operation with minimal maintenance.
(4). When the preforms have made one "trip" through the preheater, they are manually loaded two(three or four) at a time into the blow molder.
(5). After the bottles are formed in the blowing cycle, they are removed and the cycle continues. The finished bottles are then loaded directly onto a conveyor for filling or can be stored for later use.
(1) Q: Are you a factory or trading company?
A: We are a factory, professional bottle blowing machine manufacturer.
(2) Q: Where is your factory located? How can i visit there?
A: Our factory is located in Taizhou huangyan city,Zhejiang province.
Near shanghai&Ningbo port. 3hours by train from shanghai.2 hous by air from guangzhou.
(3) Q: How about the quality control in your factory?
A: Quality is the first.
OUGE machine focus on quality, pay great attention to quality control from begining to end.Every piece of machine is tested strictly before packing and delivery.
(4) Q:How long is the warranty of your equipment?
A: One year warranty after receipt check upon delivery.
(5) Q: Can i ask instruction in my own language?
A: OUGE machine translate the instruction from chinese to English, Spanish, Russian and French without any charge only if you have required in advance. We also can translate the language of the PLC and touch screen to make sure you will have an easy operation.
(6) Q: Do provide bottle and other auxiliary equipment like air compressor?
A: Yes, we can offer complete system you will no need spend a lot of time to find suitable goods. We also can make the drawing based on the picture as your willing.
