Saving energy plastic bottle blow machine for juice lines
1.Machine Features
This machine can blow 50ml- 2000ml bottles.
Servo motor saves more electricrty and gets more output.
Automatic lubrication oil device protects the machine well.
Horizontal rotation transfer system make the construction and maintance more easy,reduce cost of spare part change.
Touch screen control system for simple operation with 9inch siemens LED screen.
2. Machine specification
| OGB-4HS | ||||
PRODUCT | Theoretical output | PSC/H | 6000 | |
| Max volume | L | 2.0 | ||
| Max height | mm | 360 | ||
| Max diameter | mm | 105 | ||
MOULD | Cavity | / | 4 | |
| Mould plate dimension(LxH) | mm | 500x450 | ||
Mould thicknes | mm | 160 | ||
Mould opening stroke | mm | 130 | ||
ELETRICAL | Power | kw | 220-380v/50-60hz | |
| Total power | kw | 25 | ||
| Heating power | kw | 22 | ||
| AIR SYSTEM | Operation pressure | Mpa | 0.8-1.0 | |
| Action air consuming | m³/min | ≥1.2 | ||
| Blowing pressure | Mpa | 2.6-4.0 | ||
| Blowing air consuming | m³/min | ≥4.8 | ||
MACHINE | Blower dimension(LxWxH) | m | 3.7x1.2x2.3 | |
| Blower weight | KG | 4000 | ||
Oven dimension (LxWxH) | m | 1.9x0.9x2.2 | ||
| Oven weight | KG | 200 | ||
3.Bottle sample
Carbonated drink bottle

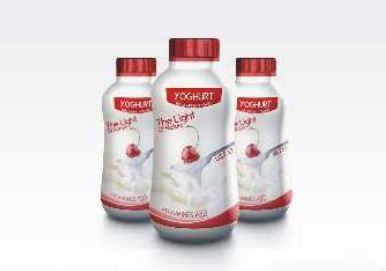

Dairy bottles
Mineral bottles
4. Product details
Servo precise positioning
Neat electric box

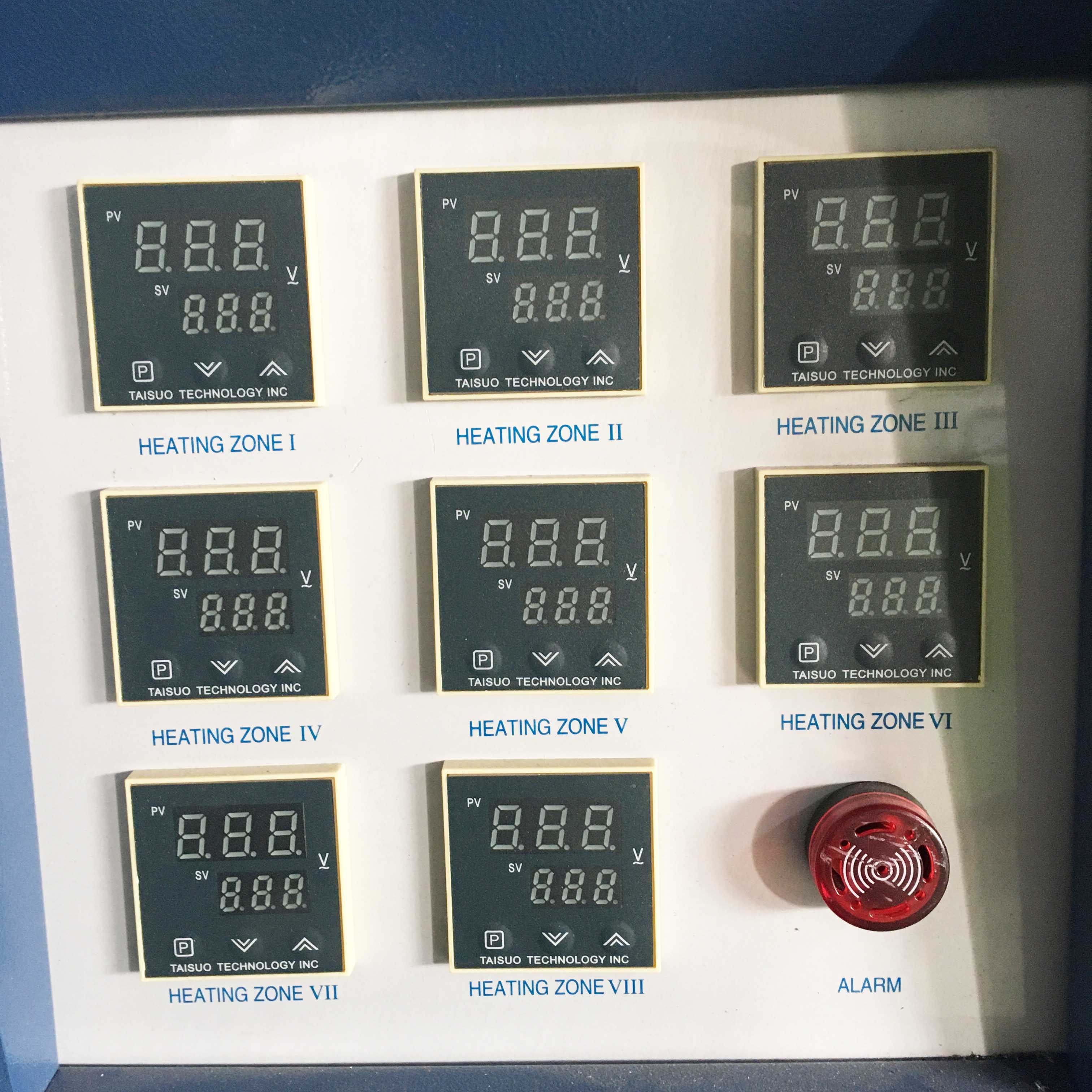

Unique heating design
Small size
5.Services
The bottles &shapes program includes the following stages：
Development of a design and marketing idea
Selection of materials
Bottle mold design
CAD and FEM-supported construction
Development of the blow mold
Process control
Optimum materials savings（light weighting）
6.Our Customers factory
7.FAQ
Q: Are you a factory or trading company?
A: We are a factory directly supplier.
Q: How about quality control in your factory?
A: “ Quality first,Reputation above all.”
OUGE machine focuses on quality,quality controls from beginning to the end. Every piece of goods is tested strictly before packing and delivery.
Q: What is the language of the PLC and touch panel?
A: Don’t worry, we will translate the language in English,Spanish or any other language to make sure you will have an easy operation.
