1.Features:
1.Double crank arm for mold locking reaches high mold-locking strength and flexible action.
2.Use PLC for control (time relay control optional ), easy repair,low cost, with the time controllable accurately in 0.01s.
3.The gas circuit consists of moving and blowing so as to satisfy the different air demand of them.
4.The far-infrared heater uses a way of conversion self-rotating heating and the rail revolution makes the heat even ,quick and reliable.
5.Every heating lamp has independent temperature control device to get ideal preform heating effect.
6.The direction of the heating lamp is adjustable upon different preforms.
7.Only need one operator,do not need special trainiing.Simple installing and starting.
ITEM | 单位 | OGMS-4 | |||
理论产量 | Theoretical output | Pcs/h | 2500 | ||
瓶型规格PRODUCT | 最大容积 | Max. Volume | L | 1.5 | |
最大高度 | Max. height | mm | 360 | ||
最大直径 | Max. diameter | mm | 105 | ||
成型组规格 MOULD | 模穴数 | Number of cavities | / | 4 | |
模板尺寸 | .mould plate dimension(LxH) | mm | 700×420 | ||
模厚 | mould thickness | mm | 240 | ||
开模行程 | Mould opening stroke | mm | 200 | ||
电力规格 ELECTRICAL | 电源 | Power | 220-380V/50-60Hz | ||
总功率 | Total power | KW | 21 | ||
加热功率 | Heating power | KW | 20 | ||
机器规格 MACHINE | 吹瓶机主机尺寸 | Main body dimension(LxWxH) | M | 1.9×0.85×2.25 | |
吹瓶机主机重量 | Main body weight | KG | 750 | ||
加热烘箱尺寸 | Pre-heater dimension | M | 1.8×0.6×1.4 | ||
加热烘箱重量 | Pre-heater weight | KG | 350 | ||
瓶子输送带尺寸 | Bottle conveyor dimension | M | 2.0×0.6×1.1 | ||
瓶子输送带重量 | Bottle conveyor weight | KG | 80 | ||

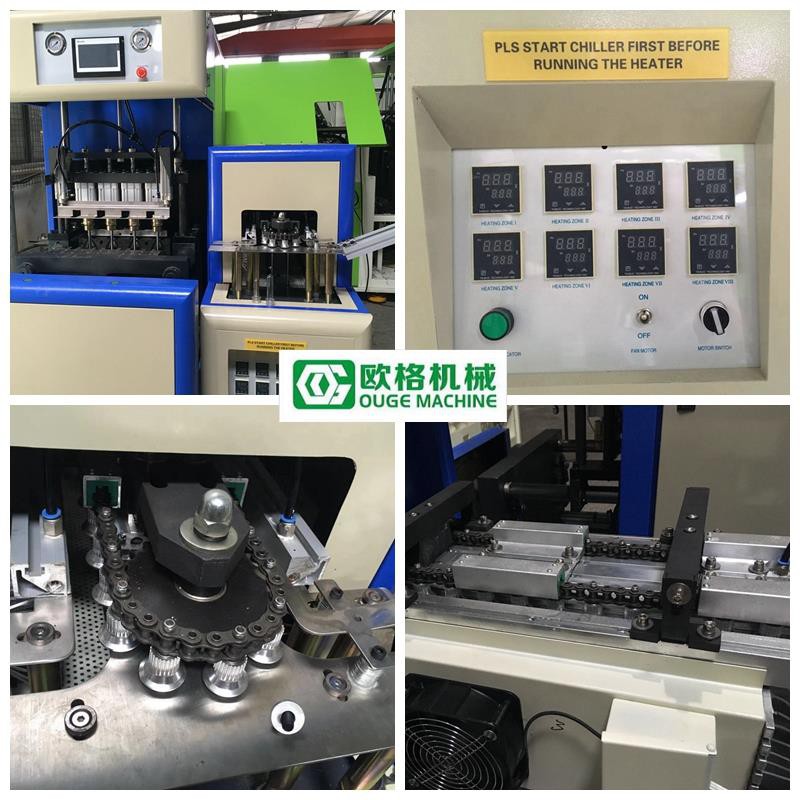

2.Machine details :
3.Aulixiary equipment:
high pressure air compressor
air tank
air filter
air dryer
water chiller
4.Company information:
OUGE supplies various of PET blow moulds,which has covered the whole fields of mineral water,soft drink and juice as well as in the other food and non-food utilization.It permits our customer to produce high quality PET bottle with the most economital investment, the shortest production startup time and the lowest maintenance cost.
5.Trade show
6.Warranty
Warranty: One year from the date from the date of Installation or acceptance of the Plant whichever comes first.
Free Spare Parts : Digital instrument, Sealing, Stretching cylinder seal ring, Mould-adjustment wrench, Furnace temperature table, Furnace heating tube and other relative vulnerable part .
Installation: Experts’ team to buyer’s country after confirmation that the goods arrived in site and civil works completed get ready for installation. Funds for trip need to be payed by client and extra salary $50/day during the engineer’s journey.
7.Contact us
If you need more detailed information, please contact us.
