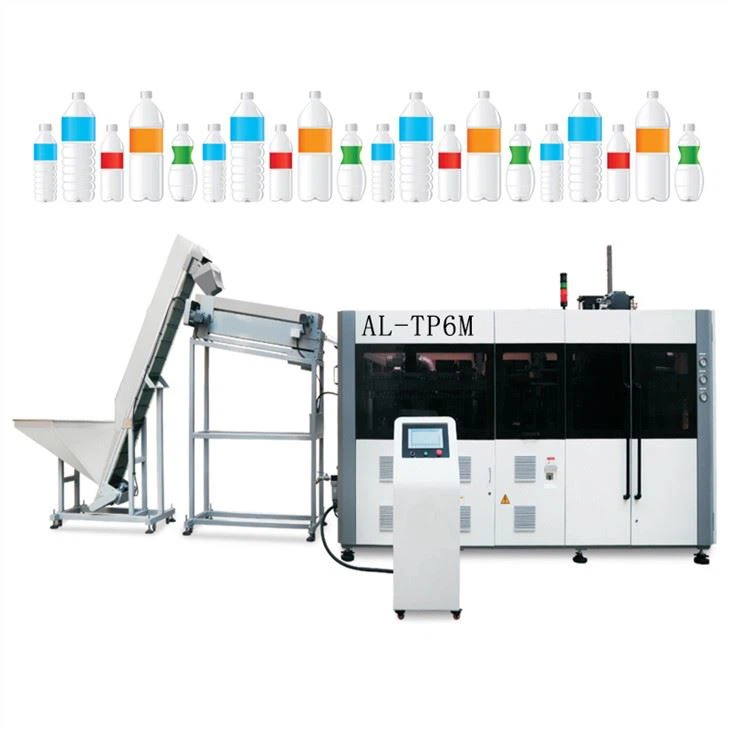

Multi functional servo motor bottle making machine
1. Machine Features
Feeding system
Continuous and high speed preform fdding system.Multiple protection device for precise preform feeding.
Transfer and heating system
Horizontal rotation transfer system to eliminate preform flipping.
Compact preform-chain pitch design for efficient heating and reduce energy consumption.
Optimized exhausting and preform surface cooling system.
Transfer and fetch system
Servo motor driven preform transfer system for quick transfer and precise preform locating.
Blowing and clamping system
Precision electromagnetic valves for fast responding time and high volume production.
Conteol system
9 inch LCD touch screen with 64K colors.
Other
All electric mechanism to ensure high speed operation and precise locating.
Low energy consumption,low wear,low pollution.
2.Machine Specification
| MODEL | UNIT | AL-TP6M | |
CONTAINER | Number of cavities | Pc | 6 |
| Max. capactity | L | 1.0 | |
| Max. neck diameter | mm | 30 | |
| Max. body diameter | mm | 80 | |
| Max. bottle height | mm | 300 | |
| Theoretical output | BPH | 9000 | |
| MOLDING | Spindle chain pictch | mm | 38.1 |
| Cavity pitch | mm | 90 | |
| ELECTRICAL POWER | Max. heating power | KW | 40 |
| Servo motor power | KW | 9.75 | |
| Other motor power | KW | 4.21 | |
| Total power | KW | 54 | |
| Voltage/Frequency | V/HZ | 220-380V/50-60HZ | |
| AIR SYSTEM | Blowing pressure | Bar | 35 |
| High pressure consuming | L/min | 7000 | |
| MOLD COOLING WATER | Operating pressure | Bar | 3-5 |
| Temperature range | ℃ | 10-12 | |
| Flow rate | L/min | 50 | |
| Cooling capaciyt | HP | 5 | |
| HEATER COOLING WATER | Operature pressure | Bar | 3-5 |
| Temperature range | ℃ | 10-12 | |
| Flow rate | L/min | 50 | |
| Cooling capacity | HP | 5 | |
| MACHINE | Size（LxWxH） | M | 4.0x1.3x2.3 |
| Weight | KG | 4300 |
3.Bottle samples
water,beverage,tea drinks,ect.edible oil and condiment shuch as soy sauce.
4.Machine Details
Multiple safety protection device for preform feeding.
High speed precision blowing valve set make high output with long life.
Using hard chaw to catch preform and bottle noware with long lift.
Siemens brand for PLC, servo motor and servo driver.
5.Certificate
ISO9001，CAS,CE etc.
6.About us
OUGE MACHINE has focused on PET blowing machine and molds for over 10 years in China. We started as a small operation, but now have become one of the leading suppliers in the PET industry in China.Today, OUGE MACHINE has been one of the top producers of PET blowing machine and molds, such as: Full automatic PET bottle making machine, semi automatic PET bottle making machine, hand feeding blowing machine, blow mould, PET preform mold, cap mold.
7.FAQ
Q: Are you a factory or trading company?
A: We are a factory directly supplier.
Q: Do you provide bottle blow mould and air compresor ?
A: Yes, we provide complete system and you will no need to find the suitable air compressor and chiller...etc
Q: What is the language of the PLC and touch panel?
A: Don’t worry, we will translate the language in English,Spanish or any other language to make sure you will have an easy operation.
