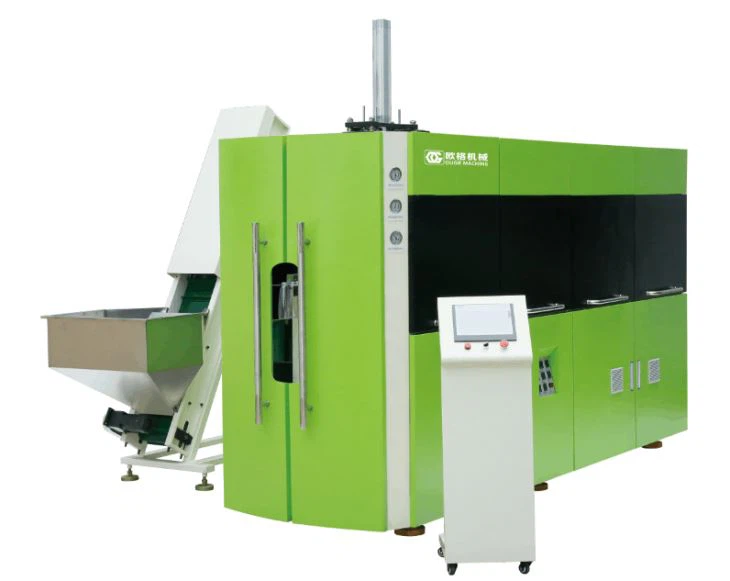

Automatic plastic bottle blowing machine with servo motor
1. PRODUCT FEATURES OF MACHINE
Features：
Compact preform heating distance design for efficient heating and reduce energy consumption.
Moulding closing adopts CAM linkage,no chain plain pin shaft make it small volume and long lift.
Using hard claw to catch the preform and bottle,resistance to wear with long life.
Advantages：
Servo motor saves more electricity and gets more output.
Automatic lubrication oil device protects the machine well.
It holds less investment, high efficiency, easy operation, simple repair, safety ect.
2. PRODUCT SPECIFICATION OF MACHINE
ITEM | UNIT | OGB-4HS | |
Theoretical output | Pcs/h | 6000 | |
Product | Volume | L | 2.0 |
Max.height | mm | 360 | |
Max.diameter | mm | 105 | |
Mould | Number of cavity | / | 4 |
Mould plate dimension(L×H) | mm | 500×450 | |
Mould thickness | mm | 160 | |
Mould opening stroke | mm | 130 | |
Electrical | Power | 220-380V/50-60HZ | |
Total power | KW | 25 | |
Heating power | KW | 22 | |
Air system | Operation pressure | Mpa | 0.8-1.0 |
Action air consuming | m³/min | ≧1.2 | |
Blowing pressure | Mpa | 2.6-4.0 | |
Blowing air consuming | m³/min | ≧4.8 | |
Machine | Main body dimension(L×W×H) | M | 3.7×1.2×2.3 |
Main body weight | KG | 4000 | |
Preform autoloader(LxWxH) | M | 1.9×1.9×2.2 | |
Preform automatic weight | KG | 200 | |
3. PRODUCT APPLICATION
● Mineral water
● Beverage
● Dairy products
● Condiment
4. THE MACHINE DETAILS
Accurate positioning, speeding up blowing speed High pressure blow valve(SEITZ from Switzerland)
5. PRODUCT QUALIFICATION OF MACHINE

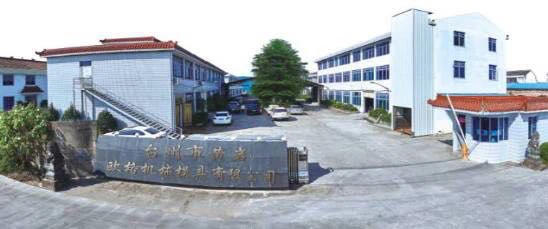

Factory
OUGE offers total solutions of PET bottles for you
OUGE company is located in the East China Sea coast, the famous “land of plastic mold”---- Huangyan zhejiang. Specializes in the production of PET automatic and semi-automatic blowing machines, preform moulds and bottle moulds. The main products include: all kinds of carbonated beverage bottles, juice bottles, alcohol drinks bottles, and cosmetic containers, PMMA lamps, PP infusion bottles, edible oil bottles ,etc. Ouge consists of many professional engineers with rich experience in the PET industry and high-quality staff. Over the past several years, Ouge has always been devoting its utmost efforts to improving the technology, researching the market and developing new products to suit for all customer needs.
Production Workshop
OUGE is that you can trust, worthy of cooperation partners!
OUGE company has always been adhering to the advanced design concept and good production technology. Due to superior products, advanced technology, favorable price and high-reputation after-sales service, it wins the trust of users.
We firmly believe that Ouge machine you can trust , and is most worthy of your cooperation partner, dedicated to working together to build a better tomorrow!
6. OUR SERVICES
Warranty: One year from the date from the date of Installation or acceptance of the Plant whichever comes first.
Free Spare Parts: Digital instrument, Sealing, Stretching cylinder seal ring, Mould-adjustment wrench, Furnace temperature table, Furnace heating tube and other relative vulnerable part .
Installation: Experts’ team to buyer’s country after confirmation that the goods arrived in site and civil works completed get ready for installation. Funds for trip need to be payed by client and extra salary $50/day during the engineer’s journey.
7. DELIVER & SHIPPING
● Package: Wooden case /Plastic packaging
● Payment：L/C,T/T
● Available Trade Terms：FOB, EXW
● Port：NINGBO PORT
● Shipping: By sea/air
8. FAQ
Q1.How can I get a sample to check your quality?
A: After mold finishing we will test and send bottles for your check.
Q2. Where is your factory located?
A: Our factory near Shanghai and Ningbo, located in Huangyan, Taizhou.
Q3.What about the lead time for mass production?
A: Honestly, it depends on the order quantity and the season you place the order. Generally speaking, production lead time is 30-45 days.
Any machines requirement just be free to tell us! We will provide the best service to you!
Would like to know more details , feel free to send us an inquiry!
