Fully automatic 4 cavity plastic bottle blowing machine
1. PRODUCT FEATURES OF MACHINE
Features：
Servo motor drive system with synchronized base blow mould for fast response operation ,precision blowing valve for high output.
Moulding closing adopts CAM linkage,no chain plain pin shaft make it small volume and long lift.
Touch-panel control system for simple operation with 9 inch LCD screen
Advantages：
Servo motor saves more electricity and gets more output.
Far infrared heater lamps have strong penetrations can reduce heating time
Production workmanship process is fully automatic to make best quality and pollution-free.
2. PRODUCT SPECIFICATION OF MACHINE
ITEM | UNIT | OGB-4SS | |
Theoretical output | Pcs/h | 6500 | |
Product | Volume | L | 2.0 |
Max.height | mm | 360 | |
Max.diameter | mm | 105 | |
Mould | Number of cavity | / | 4 |
Mould plate dimension(L×H) | mm | 500×450 | |
Mould thickness | mm | 160 | |
Mould opening stroke | mm | 130 | |
Electrical | Power | 220-380V/50-60HZ | |
Total power | KW | 25 | |
Heating power | KW | 22 | |
Air system | Operation pressure | Mpa | 0.8-1.0 |
Action air consuming | m³/min | ≧0.6 | |
Blowing pressure | Mpa | 2.6-4.0 | |
Blowing air consuming | m³/min | ≧4.8 | |
Machine | Main body dimension(L×W×H) | M | 3.7×1.2×2.3 |
Main body weight | KG | 4000 | |
Preform autoloader(LxWxH) | M | 1.9×1.9×2.2 | |
Preform automatic weight | KG | 200 | |

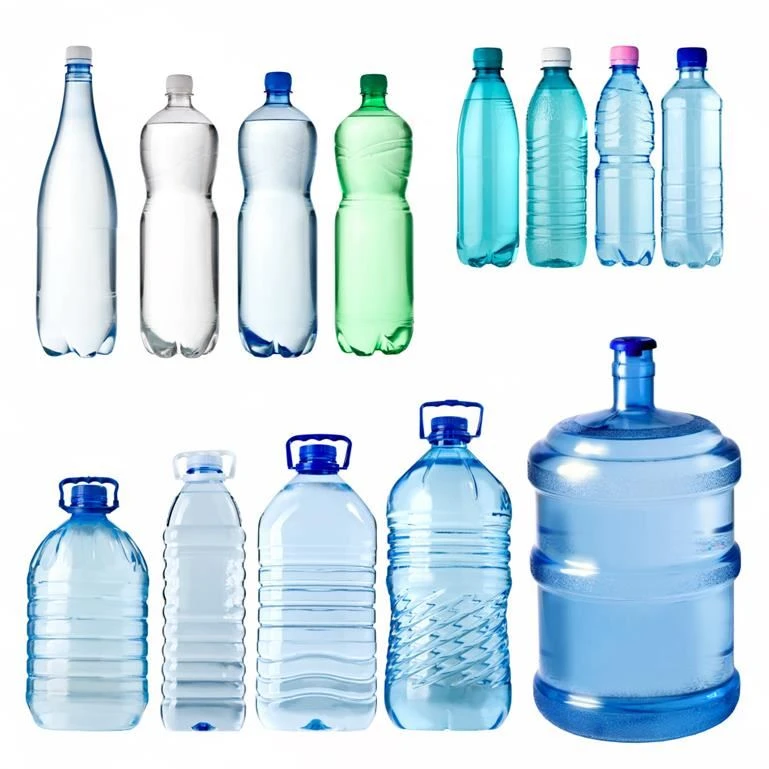

3. PRODUCT APPLICATION
--water,beverage,tae drinks,ect.
--edible oil and condiment shuch as soy sauce.
--cosmetic,health-care products.pharmaceutical,food field.
4. THE MACHINE DETAILS
--Traverse servo, speed up preform transfer
--High pressure blow valve(SEITZ from Switzerland)
5. PRODUCT QUALIFICATION OF MACHINE
Factory
OUGE is that you can trust, worthy of cooperation partners!
OUGE company has always been adhering to the advanced design concept and good production technology. Due to superior products, advanced technology, favorable price and high-reputation after-sales service, it wins the trust of users.
We firmly believe that Ouge machine you can trust , and is most worthy of your cooperation partner, dedicated to working together to build a better tomorrow!
Working shop
6. CUSTOMER TALK
Customers come to visit the factory, we warmly welcome them and recommend suitable machines to customers according to their requirements, and discuss the most suitable production solutions for customers together.
We will visit our customers regularly to understand their latest developments and needs. Formulate future business plans together and cooperate more friendly.
7. DELIVER & SHIPPING
Payment term
√30% by T/T as deposit, the balance should be paid by T/T before shipment.
Packaging
√Package type: wooden case &plastic packaging
Shipping
√Shipping:By sea/By air
Delivery time
√30-45 days after customer send the deposit and confirm the bottle drawing.
Guarantee time
√12 months after machine running in buyer’s factory.
8. FAQ
Q1.When can I get the price?
A: We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or inform us by email, so that we will regard your inquiry in priority.
Q2.What is your terms of delivery?
A: We accept EXW, FOB, CIF etc. You can choose the one which is the most convenient or cost effective for you.
Q3.Can I visit your factory and send team for learning and inspect ?
A: Yes,sure.We will do our best to teaching you how to use the machine.welcome to visit our factory!
Any machines requirement just be free to tell us! We will provide the best service to you!
Would like to know more details , feel free to send us an inquiry!
