Hand sanitizer bottle molding machine
1.Machine Features
● Fast speed, accurate position, smooth action.
● According to special demand, adopt cross double crank pressed clamping force. Mould open stroke can be adjustable according to the bottle size to save the time.
● Production workmanship process is full automatic to make best quality and pollution free. It holds less investment, high efficiency, easy operation, simple repair, safety, etc.
2. Machine parameter
| OGB-3 | ||||
PRODUCT | Theoretical output | PSC/H | 3300 | |
| Max volume | L | 1.5 | ||
| Max height | mm | 360 | ||
| Max diameter | mm | 105 | ||
MOULD | Cavity | / | 3 | |
| Mould plate dimension(LxH) | mm | 430x360 | ||
Mould thicknes | mm | 188 | ||
Mould opening stroke | mm | 110 | ||
ELECTRICAL | Power | kw | 220-380v/50-60hz | |
| Total power | kw | 18 | ||
| Heating power | kw | 15 | ||
| AIR SYSTEM | Operation pressure | Mpa | 0.8-1.0 | |
| Action air consuming | m³/min | ≥1.6 | ||
| Blowing pressure | Mpa | 2.6-4.0 | ||
| Blowing air consuming | m³/min | ≥2.4 | ||
MACHINE | Blower dimension(LxWxH) | m | 2.7x1.45x2.5 | |
| Blower weight | KG | 2000 | ||
Oven dimension (LxWxH) | m | 1.9x1.9x2.2 | ||
| Oven weight | KG | 200 | ||

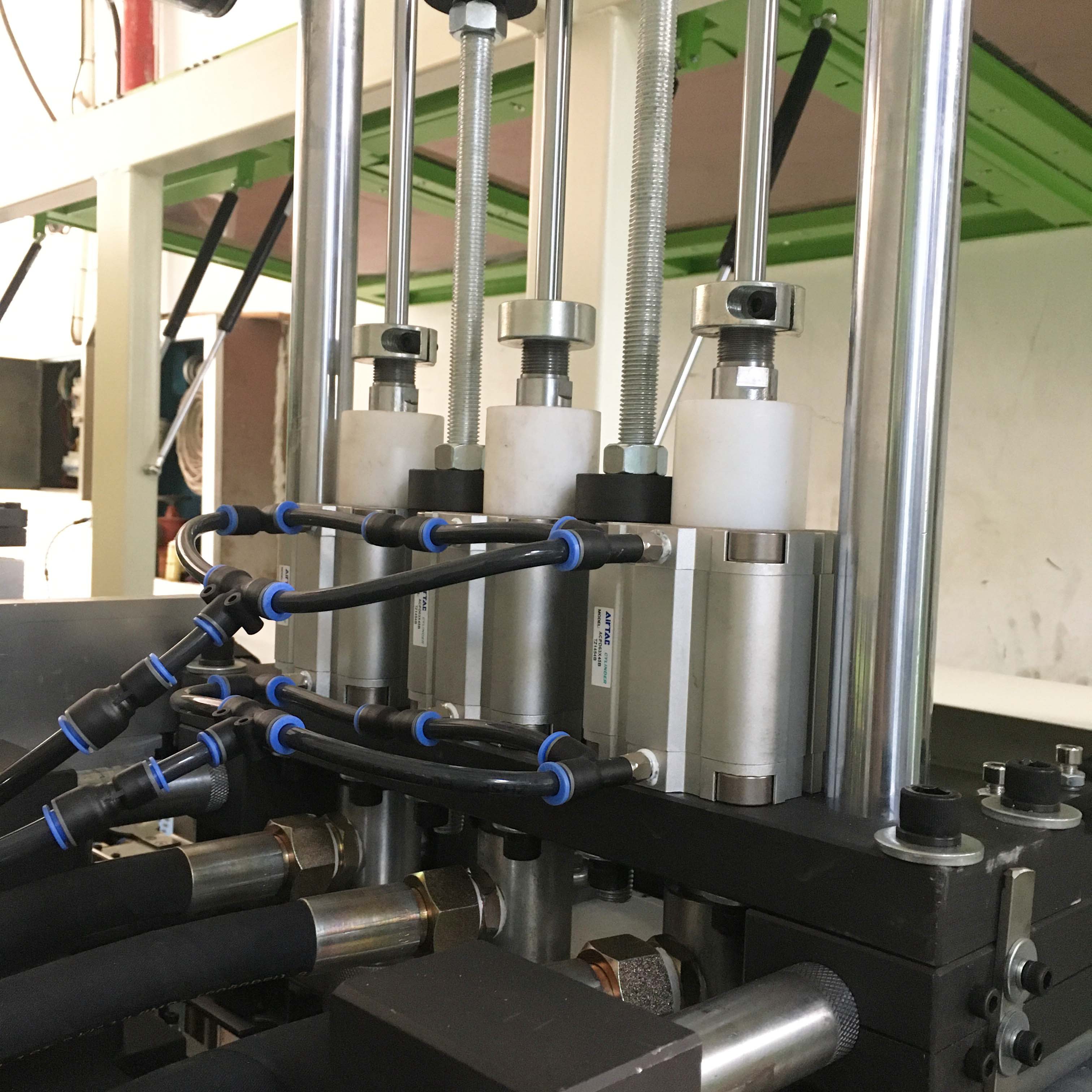

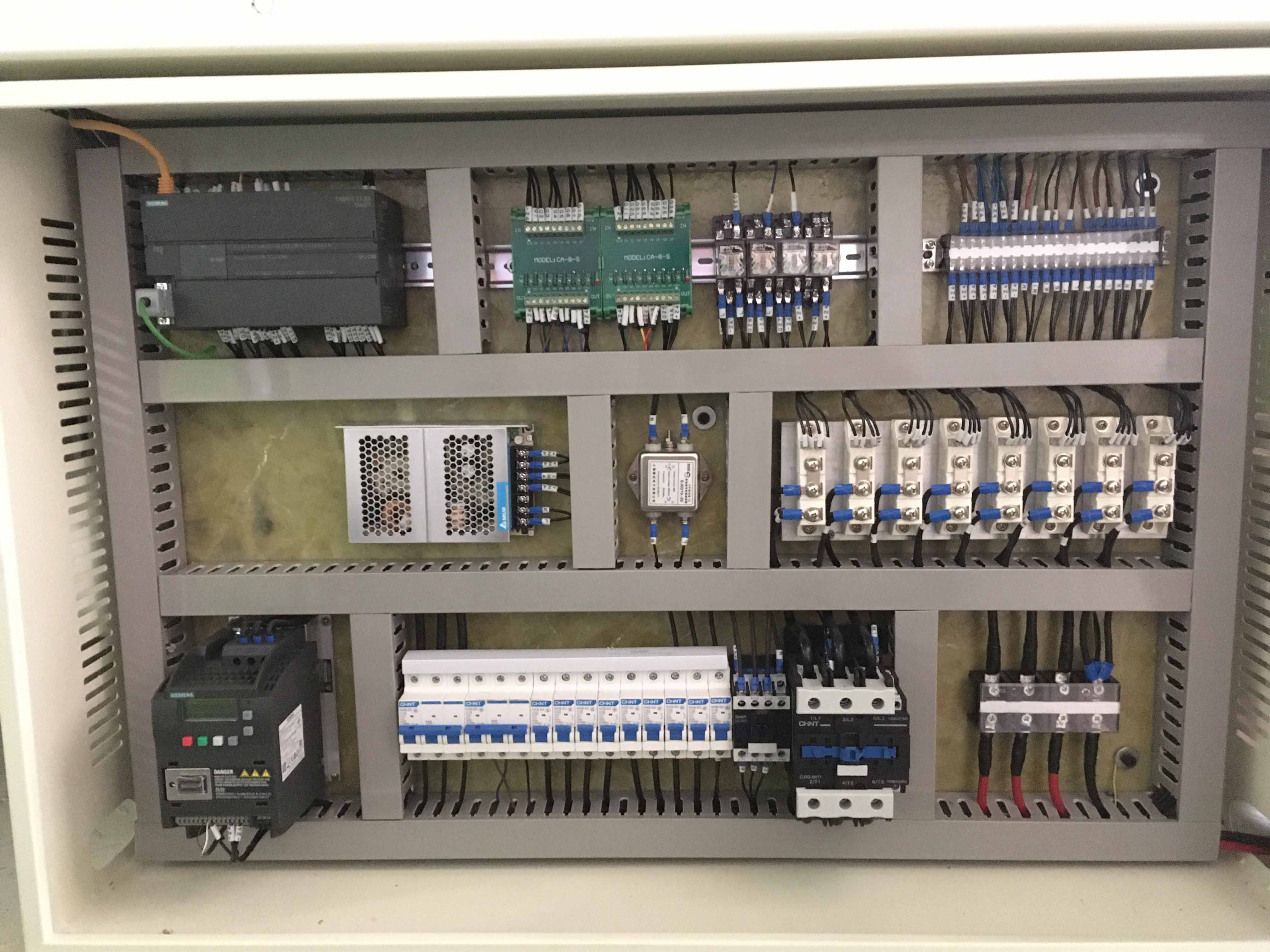

3. Machine details
4.About us
As consumers choose more and more beverages, products need to be more personalized, more colorful, and more convenient to drink.
For beverage manufacturers, this usually means a certain degree of flexibility while ensuring normal production：
● More independent products
● Shorter product cycle
● Faster changeover
5.Service
Oversea engineer service
There're more than 10 people team of oversea service engineers who can do debug in oversea customers' factory.
Free Mould Design
Ouge machine provide free design serive,we could help you to design your own bottles.
Good quality of blow machine and spare parts
All of ouge machine using the top brand parts.Spare parts free change within one year.
Service online 24hours/365days
We have sales team working all days for you. The reply within 12 hours.
6.FAQ
Q: What is your machine output？
A:3300BPH
Q: What can I pay？
A：Credit card，west union and vasa etc.
Q：Are you factory or trading company？
A：We are pet bottle blowing machine factory.
