PET Servo System Bottle Blowing Machine
1. Machine features
●This pet bottle blowing machine ,it can blow 100-2000ml bottles.
●Servo motor saves more electricrty and gets more output.
●Slip for bottle mould make the installation more easy.
●Touch screen control system for simple operation with 9inch siemens LED screen.
2.Machine specification
| MODEL | UNIT | OGB-4SS | |
CONTAINER | Number of cavities | Pc | 4 |
| Max. capactity | L | 2.0 | |
| Max. neck diameter | mm | 38 | |
| Max. body diameter | mm | 105 | |
| Max. bottle height | mm | 360 | |
| Theoretical output | BPH | 6500 | |
| ELECTRICAL POWER | Max. heating power | KW | 25 |
| Total power | KW | 22 | |
| Voltage/Frequency | V/HZ | 220-380V/50-60HZ | |
| AIR SYSTEM | Operation pressure | Bar | 0.8-1.0 |
| Action air consuming | L/min | 0.6 | |
| Blowing pressure | Bar | 2.6-4.0 | |
| Blowing air consuming | L/min | 4.8 | |
| MACHINE | Main body dimension （LxWxH） | M | 3.7x1.2x2.3 |
| Main body weight | KG | 4000 | |
| Preform autoloader (LxWxH) | M | 1.9x1.9x2.2 | |
| Weight | KG | 5000 |

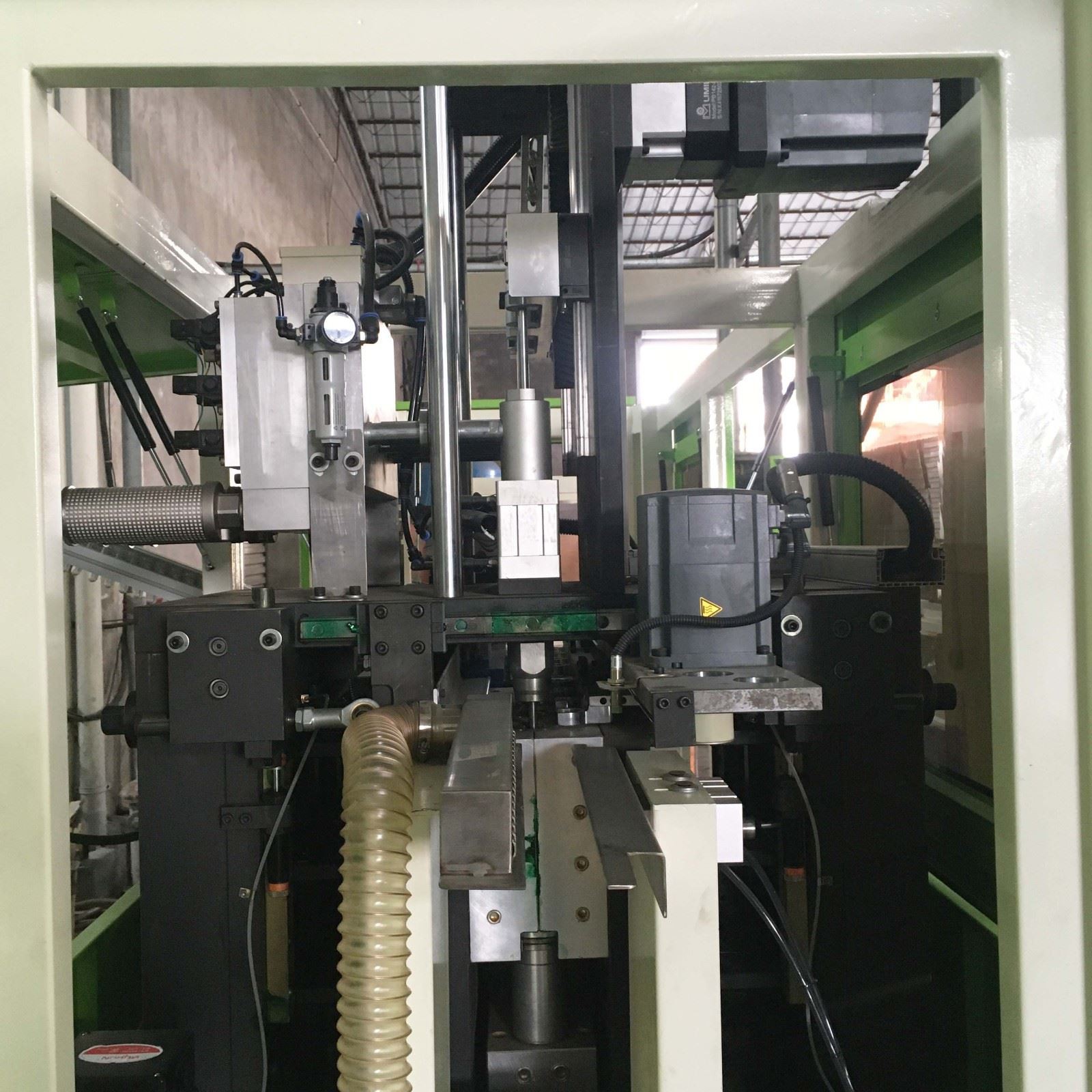

3.Machine details
4.Appliaction areas
Cosmetic bottle
Mineral water
Beverage
5.Certificate
6.Payment & delivery
Payment term：30% by T/T as deposit, the rest should be payment before shipment.
Available Trade Terms：FOB,CFR,CIF,EXW etc.
Shipping：By sea/By air
Delivery time：30-45 days after received the customer deposit and confirm the bottle drawing.
Guaranty：1 years.
