Introduction

Each material requires a different set of processing parameters in the injection molding process, including the injection temperature, injection pressure, mold temperature, ejection temperature, and cycle time.

Specification

Description			HX318PET
注射单元	INJECTION UNIT		HX318PET
螺杆直径	Screw Diameter	mm	75
螺杆长径比	Screw L/D ratio	L/D	24
理论注射容积	Injection capacity in theory	cm³	1612
注射重量	Injection weight	g	1870
注射压力	Injection Pressure	Mpa	149
螺杆转速	Screw Speed	r.p.m	120
锁模单位	CLAMPING UNIT
锁模力	Clamping Tonnage	KN	3180
开模行程	Toggle Stroke	mm	600
拉杆内间距	Space Between Tie-Bar	mm	660×590
最大模厚	Max.Mould thickness	mm	690
最小模厚	Min. Mould thickness	mm	230
顶出行程	Ejector Stroke	mm	175
顶出力	Ejector Tonnage	KN	134
其他	Others
最大油泵压力	Max.Pump pressure	Mpa	17.5
油泵电机功率	Pump Motor Power	KW	40
加热功率	Heater Power	KW	24.73
外形尺寸	Machine Dimension	m	7.35×1.42×2.20
机器重量	Machine Weight	ton	9
油箱容积	Oil Tank Capacity	L	350

Features

1. High Precise Control The servo system can control the machine's pressure, speed & location precisely, making sure that the error of accurate repeatability precision for the shot measurement is <0.3%.

2. High-sensitivity response Because the motor vector is matched with the controller accurately, it only takes 0.5 seconds to input the number from 0 to max. Compared with other traditional hydraulic injection molding machines, the HJS series is faster in speed with a shorter cycle time and is highly efficient in production.

3. Low noise Compared with traditional fixed pump and variable pump systems, the noise is 1/10 lower under normal circumstances, making it more suitable for sealed dustless workshops.

4. Energy Saving Overall efficiency is 10% more & driving capacity is 18% more than common machine. This series can save 40-80% energy, and achieve first-class energy efficiency.

5. Water cooling saving The system condition prevent high pressure uploading without any power output, leads to the water cooling saving.

6. Injection End and temperature tracking is curve display, dynamic recorder parameter is modified, and dynamic warning is exhibited, all these make the operation more convenient.

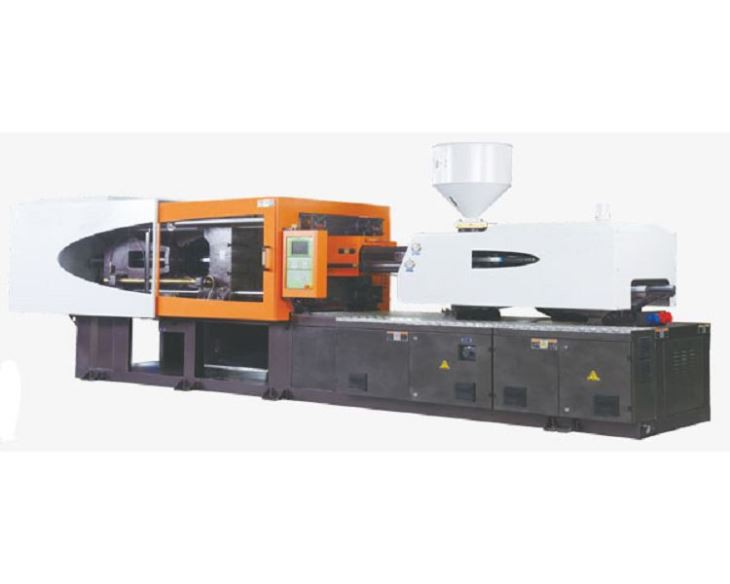

Details picture
