PET stretch blow bottle making machines

OGB-4

1.Production Features

This machine is suitable for mineral water bottles, carbonated beverage bottles, daily chemical bottles, medicine bottles etc less than 1500ml.
The far-infrared heater uses a way of conversion self-rotating heating and the rail revolution makes the heating even，quick and reliable.
Fast speed，accurate position，smooth action

2. Product specification

OGB-4
PRODUCT	Theoretical output	PSC/H	4500
	Max volume	L	1.5
	Max height	mm	360
	Max diameter	mm	105
MOULD	Cavity	/	4
	Mould plate dimension(LxH)	mm	600x360
	Mould thicknes	mm	188
	Mould opening stroke	mm	110
ELETRICAL	Power	kw	220-380v/50-60hz
	Total power	kw	25
	Heating power	kw	22
AIR SYSTEM	Operation pressure	Mpa	0.8-1.0
	Action air consuming	m³/min	≥1.6
	Blowing pressure	Mpa	2.6-4.0
	Blowing air consuming	m³/min	≥2.0
MACHINE	Blower dimension(LxWxH)	m	2.2x0.8x2.05
	Blower weight	KG	700
	Oven dimension (LxWxH)	m	1.4x0.6x1.4
	Oven weight	KG	300

3.Production Application

water,beverage,tea drinks,ect.
edible oil and condiment shuch as soy sauce.
cosmetic,health-care products.pharmaceutical,food field.

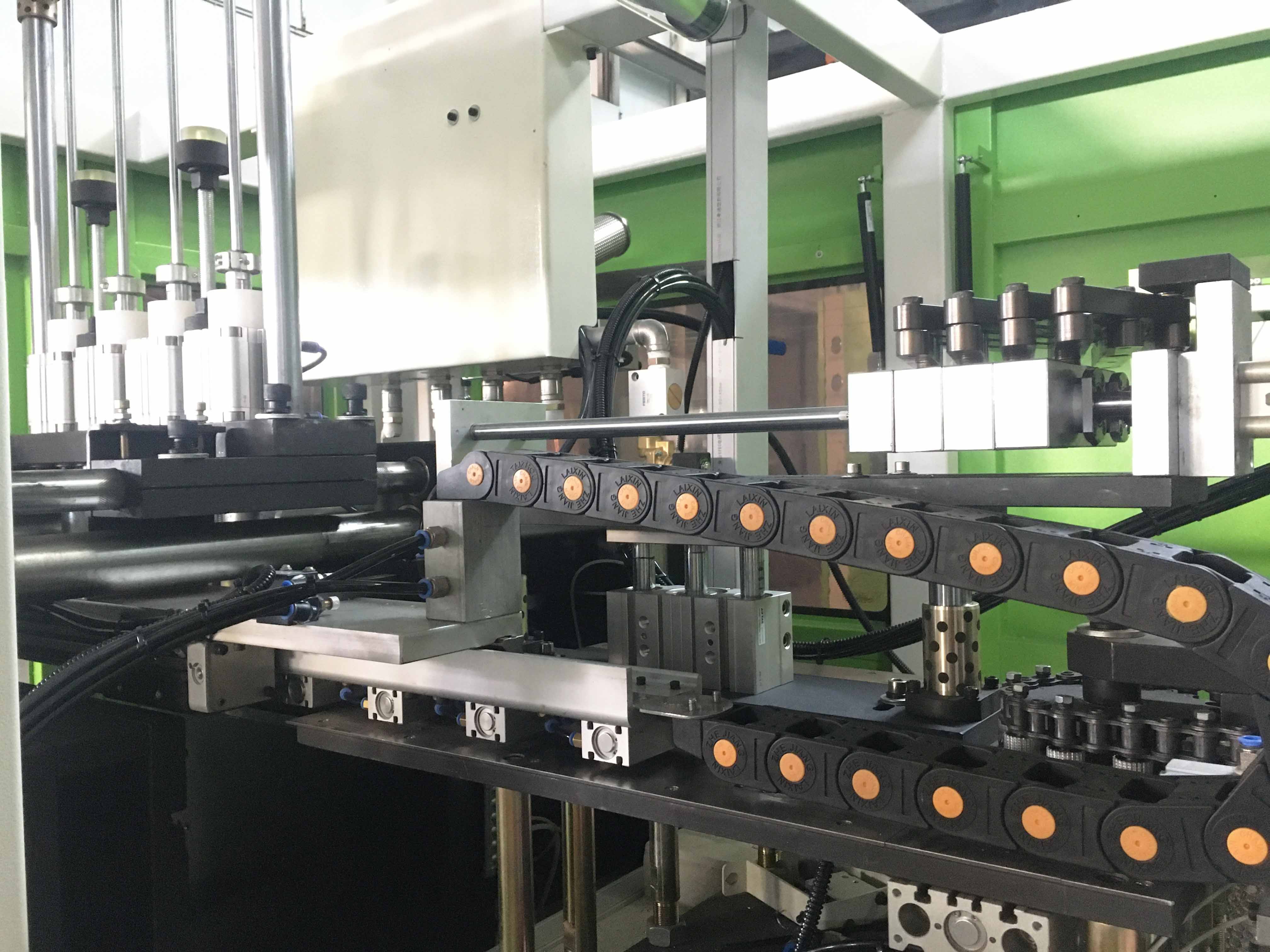

4. Machine details

Airtac cylinder

Accurate positioning of the bottle embryo

Strong template

Unique heating design

5. Workshop

THERE IS NO BEST BUT BETTER

6.Customers

We will visit our customers factory regularly to understand their latest developments and needs. Formulate future business plans together and cooperate more friendly.

7.Shipping & delivery

1597456279(1)

The way of payment：L/C,T/T,D/A etc
Available Trade Terms：FOB,CFR,CIF,EXW etc.
Port：NINGBO/SHANGHAI PORT
Warranty：1 years
The way of shipment: By sea
